Typical Single Pole & 3 way

Sort by date Sort by reaction score
HayZee518

HayZee518

New Member
Joined
Sep 11, 2013
Messages
66
Reaction score
1
Points
0
Location
Saint Regis Falls NY

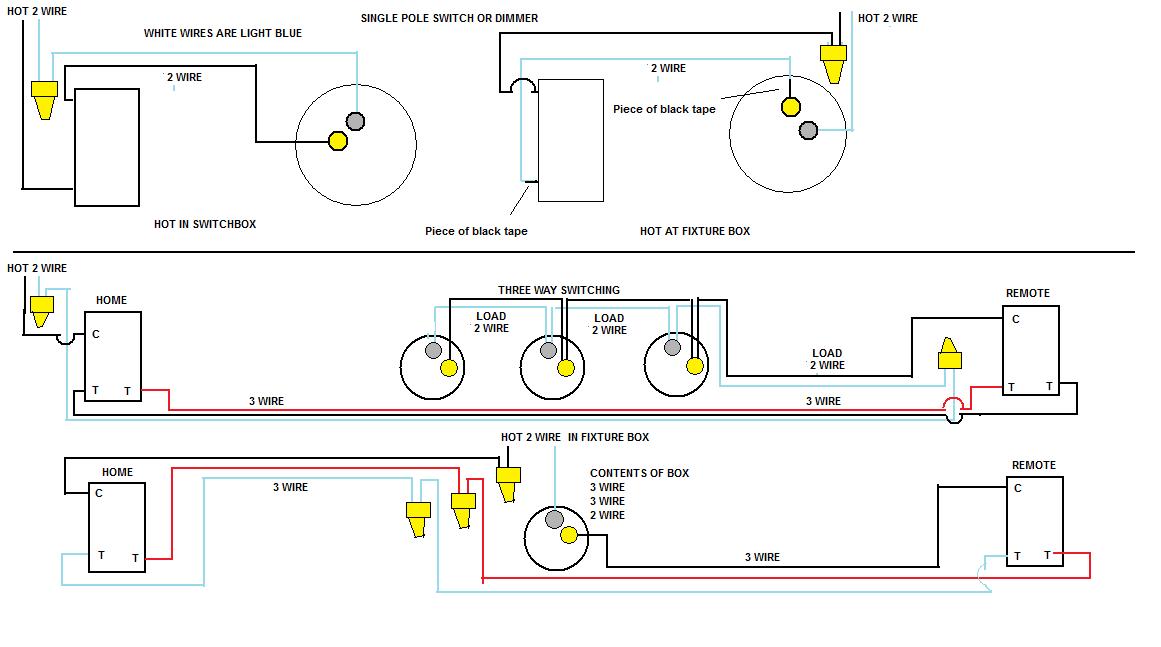

Diagrams of typical SINGLE POLE switches.
Feed in HOME box, Feed in FIXTURE BOX

Two 3 way diagrams
Feed in home BOX

Feed in FIXTURE BOX
